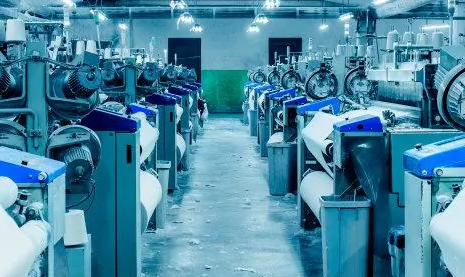

China is a big textile country with many textile enterprises. With the continuous development of textile machinery, electromechanical integration is increasingly widely used. The textile production process is affected by environmental factors such as temperature, humidity, and dust. Electric components are increasingly being used. Replaced by pneumatic components. In addition to driving pneumatic components, air compressors are also used in material transportation, jet air flow, jet automatic control, non-woven fabric winding and dyeing, cleaning, etc. The air jet loom is the largest compressed air usage equipment. During the use of the equipment, the compressed air directly contacts the textile raw materials, so the cleanliness of the compressed air is directly related to the quality of the textile products. Therefore, the compressed air produced by the air compressor must be purified before use.

Application Link

Application Link

Cleaning and Purging

During the textile production process, yarns, fabrics and equipment need to be cleaned and purged. The high-pressure airflow generated by an air compressor can be used to remove impurities, dust and lint from yarns and fabrics, and to clean equipment and pipes .In addition, air compressors are also used for yarn conditioning, drying and humidification.

Dyeing and Finishing

In the process of textile dyeing and finishing, air compressors are often used to drive dyeing machines and finishing equipment. They are used for color slurry transmission and mixing in dyeing machines, hot air drying and pneumatic transmission in finishing equipment. The high-pressure air generated by air compressors, This allows the dye to penetrate better into the fiber.

Textile Equipment Operation

Various equipment and tools in the textile industry, such as looms, spinning machines, printing machines, etc., usually require air compressors to provide power and pneumatic control. Air compressors can be used to drive the weaving elements of looms, looms, etc. The spinning adjustment device and the pressure system of the printing machine.

Textile Compression

In textile packaging and storage, the compressed air provided by the air compressor can be used to drive the textile compressor, which helps to reduce the volume of textiles and facilitates packaging and transportation.

Solution

The use of low-pressure permanent magnet variable frequency air compressors in printing and dyeing enterprises

In order to ensure the quality of printing and dyeing, the printing and dyeing process requires compressed air pressure of 0.6~0.8Mpa, pressure dew point 2~10℃, dust particles less than 5μm, and oil content not higher than 0.1mg/m³. And the compressor is required to have continuous operation and use It has the characteristics of constant air pressure and energy saving. Liyang low pressure-two-stage XTGV-5 II series air compressors are put into use in different printing, dyeing and textile enterprises. With post-processing equipment, the dew point value and filtration accuracy of the processed compressed air meet international standards. standards and meet the gas consumption requirements of the textile printing and dyeing industry.

Application Report

Points of concern when using air compressors in the textile printing and dyeing industry

Compressed air quality: Because compressed air is in direct contact with textiles, the textile printing and dyeing industry has higher requirements for compressed air quality. Air compressors and related gas treatment equipment must be able to operate continuously to remove moisture, grease, and particulate matter in the air. and other impurities should be low.

Pressure and flow control: The textile printing and dyeing process requires the air compressor to provide stable pressure and appropriate flow. Too high or too low pressure may have a negative impact on the processing of textiles, while insufficient flow May result in reduced process efficiency.

Noise and vibration control: In the textile printing and dyeing industry, appropriate measures need to be taken to control noise and vibration levels to provide a quiet and comfortable working environment and reduce the impact on surrounding equipment and textiles.
